Hardware > Motherboards MSI P35 Neo-F (MSI-7360)

?>

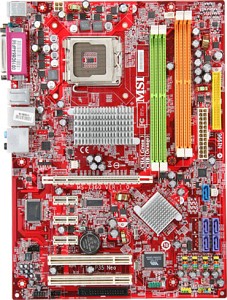

MSI P35 Neo-F (MSI-7360)

Mark: Good

Specification:

Intel P35 Chipset, Intel ICH9 Chipset
Hi-Speed USB (USB2.0) up to 12 ports.
4 SATAII ports with transfer rate up to 3Gb/s.
PCI Master v2.3, I/O APIC.
One PCI Express 16X slot
Three PCI Express x1 slots.
Two 32-bit v2.3 master PCI bus slots.

• One Ultra DMA 66/100/133 IDE controller integrated in Marvell 88SE6111. Can connect up to two Ultra ATA drives.
• SATAII controller integrated in ICH9 and Marvellо 88SE6111 chipest
• Audio - integrated by Realtek AL888
• LAN - integrated PCI Express LAN 10/100/1000 Realtek 8111B.

eComStation:

• Works with eCS2.0rc2, Intel E6750 Dual Core, 2GB RAM (disable ACPI during install and use ACPI3.04 afterwards)
• SATA Harddisk (400GB) - okay
• IDE/ATA (Marvell 88SE6111) with LG DVD-Burner - okay (thanks Dani)
• PSD=ACPI.PSD /SMP /R /APIC to enable second CPU (APIC is necessary for Realtek LAN, otherwise sporadic hangs or trap 0e)
• LAN - tested with rtng12 driver (IRQ15OVR = "YES" and probably the other settings found here for RTL8168/69 required, TCP/IP works, Netbios does _not_ work (loads fine but can not connect to server?), IEE802.2 does _not_ work), will try to test with Genmac 2.1 or use RTL8139 PCI card...
• Audio - not tested
• USB - 2GB stick and external harddisk okay

Diese Information wurde gesendet von: Andreas Buchinger -- 2007-11-27 08:02:50

[GoogleAdv]

Kommentare:

Andreas Buchinger 2007-12-08 16:53:07	Please change in above review - Netbios _does_ work (was problem with dcdb directory). But still cann't get IEE802.2 to work (Errors in lantran.log). Audio do not work with uniaud114RC4 - hangs completly when try to start any sound.
Andreas Buchinger 2009-05-09 10:07:46	With newer builds of uniaud (1.9.11, 25 Jan 2009 19:14:45) compiled by Paul, sound works. But sporadic hangs especially with smplayer and AC3 sound. Switch off power supply after shutdown no works again with acpi 3.15 (20 Apr 2009 00:51:32, acpipre3 package). Was broken since acpi 2.xx.
